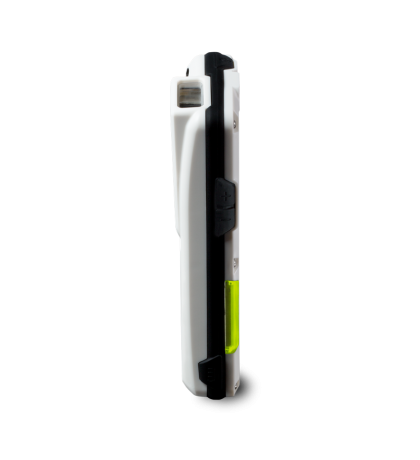

Infinea® X

The workhorse. This fully ruggedized version of our iPhone/iPod platform stands up to the rigors of demanding environments like warehousing and field services. And it combines the functions of many devices into one, bringing new efficiency to environments like healthcare.

FEATURES

• 1D/2D high-speed barcode scanner reads barcodes in any direction
• RFID technology
• Customizable audio, visual, and haptic alerts
• Fits iPhone 5/5s/SE and iPod Touch 5th and 6th generation
• Intuitive SDK for software integration

PRODUCT FEATURES

• Standard Features
  2D Barcode Imager (with the ability to scan 1D barcodes)
  Bluetooth
  RFID

MECHANICAL

• Compatibility
  iPhone 5, iPhone 5S, iPhone SE, iPod Touch 5, iPod Touch 6
• Dimensions
  148mm x 72mm x 31 mm (5.83 in x 2.84 in x 1.22 in)
• Weight
  200 grams (.44 lbs) without iOS device

ELECTRICAL

• Barcode Scanner
  2D High Speed Imager, Aimer; 650nm Class 2 laser. Image sensor 752 x 480 CMOS
• Battery Capacity
  User-replaceable rechargeable hard pack Li-polymer Battery 3.7V 1900mAh
• Bluetooth
  Bluetooth 2.0 compatible
  Class 2Distance - Up to 10m
  Serial Port Profile (SPP)
• Indicator
  4 programmable color LEDs (green, blue, red and orange)

CERTIFICATIONS

• North America Certifications
  Certifications CE, FCC, Apple MFi, IP54 Rating

ENVIRONMENTAL

• Operating Environment
  Temperature: 0°C to +40°C 32°F to 104°F
  Humidity: 5 to 90% RH
• Storage Environment
  Temperature: -20°C to +50°C
  Humidity: 5 to 90% RH

Included Items:

• Infinea X
• Standard Battery
• Torx T6 Screws (6)
• Charging Cup & Cable
• Torx T6 Key (1)
• Quick Start Guide

SPEC SHEET   USER GUIDE
